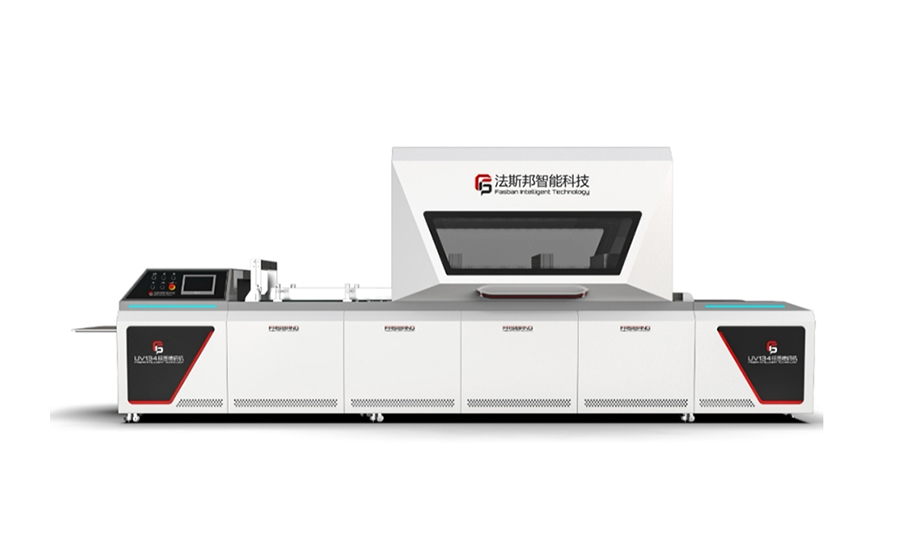

High-Speed Conveyor Precision Flat Screen Printing Machine from China Suppliers & Factory for Various Flat Materials
Machine Features
- 1All positions are equipped with Taiwan Yangming photoelectric sensors, ensuring accurate positioning and excellent performance.
- 2Automated robotic loading, unloading, and rewinding for continuous, efficient production with reduced labor.
- 3The conveyor table is equipped with a vacuum suction system, driven by a servo motor for higher transmission accuracy.
- 4The squeegee vertical movement adopts a gapless guide column structure, ensuring smooth and stable operation to improve printing quality.
- 5The squeegee horizontal movement uses a 400W servo motor with dual linear guides, suitable for high-precision printing.
- 6The screen frame lifting adopts guide column structure, ensuring high precision and smooth operation.
- 7The conveyor dimensions are approximately 2000mm × 850mm × 1560mm.
- 8Printing modes such as off-contact or fixed screen printing can be set according to customer requirements to improve efficiency.
- 9Single or double printing cycles can be set according to workpiece requirements, enabling fully automatic operation.
- 10The whole machine is controlled by a PLC and inverter system, ensuring stable performance.
- 11Equipped with a special shock absorption device for stable operation.
- 12The operation panel uses a touchscreen interface, offering quick response and easy operation.
- 13Two preset programs: single-cycle printing and fully automatic printing.
- 14Adopts advanced pneumatic components with strong power and long durability.
- 15Once set, the program can be stored in memory.
- 16The conveyor is driven by a 750W servo motor with vacuum suction function.
Technical Parameters
Full Specification Overview
| Printing color | Single color (registration tolerance ±1.5mm) |
| Single cycle | Available |
| Continuous operation | Available |
| Counter | Available |
| Delay function | Adjustable |
| Fixed screen printing speed | 1800 pcs/hour |
| Max. screen frame size | 550mm × 860mm |
| Max. printing area | 400mm × 550mm (conveyor width 600mm) |
| Max. workpiece height | 80mm |
| Screen stroke | 125mm |
| Squeegee lifting stroke | 40mm |
| Screen adjustment range | 80mm |
| Squeegee stroke | 32mm |
| Drive | Servo motor (750W conveyor motor) |
| Control system | PLC |
| Control voltage | 24VDC |
| Power supply | 220VAC 50/60Hz |
| Total power | 1.3KW |
| Air pressure | 6 bar |
| Air consumption | 2.1L/cycle |
| Machine dimensions | 880 × 1950 × 1560 mm |
| Weight | Approx. 300KG |
Safety Features
The WF high-speed conveyor precision flat screen printing machine complies with the latest engineering standards and is safe and reliable when operated correctly.
The machine is equipped with an emergency stop switch. In case of emergency, pressing the switch will immediately cut off power and stop the machine. After resolving the issue, release the switch to safely resume operation.
Frequently Asked Questions
Q What is the maximum printing speed of the WF high-speed conveyor flat screen printing machine?
The machine supports a fixed screen printing speed of up to 1800 pcs/hour, making it highly efficient for large-scale production.
Q What is the maximum printing area this machine can handle?
The maximum printing area is 400mm × 550mm, with a conveyor width of 600mm. The maximum screen frame size is 550mm × 860mm.
Q What type of control system does this machine use?
The machine uses a PLC (Programmable Logic Controller) combined with an inverter system and a touchscreen operation panel, ensuring stable, precise, and user-friendly control.
Q Does the machine support automatic loading and unloading?
Yes. The machine features automated robotic loading, unloading, and rewinding for continuous production with minimal labor involvement.
Q What power supply does the machine require?
The machine operates on 220VAC, 50/60Hz with a total power consumption of 1.3KW and requires a control voltage of 24VDC and air pressure of 6 bar.
Q What safety mechanisms are built into the machine?
The machine is built to the latest engineering safety standards and is equipped with an emergency stop switch that immediately cuts off power when pressed. Once the issue is resolved, the switch can be released to safely resume operation.
